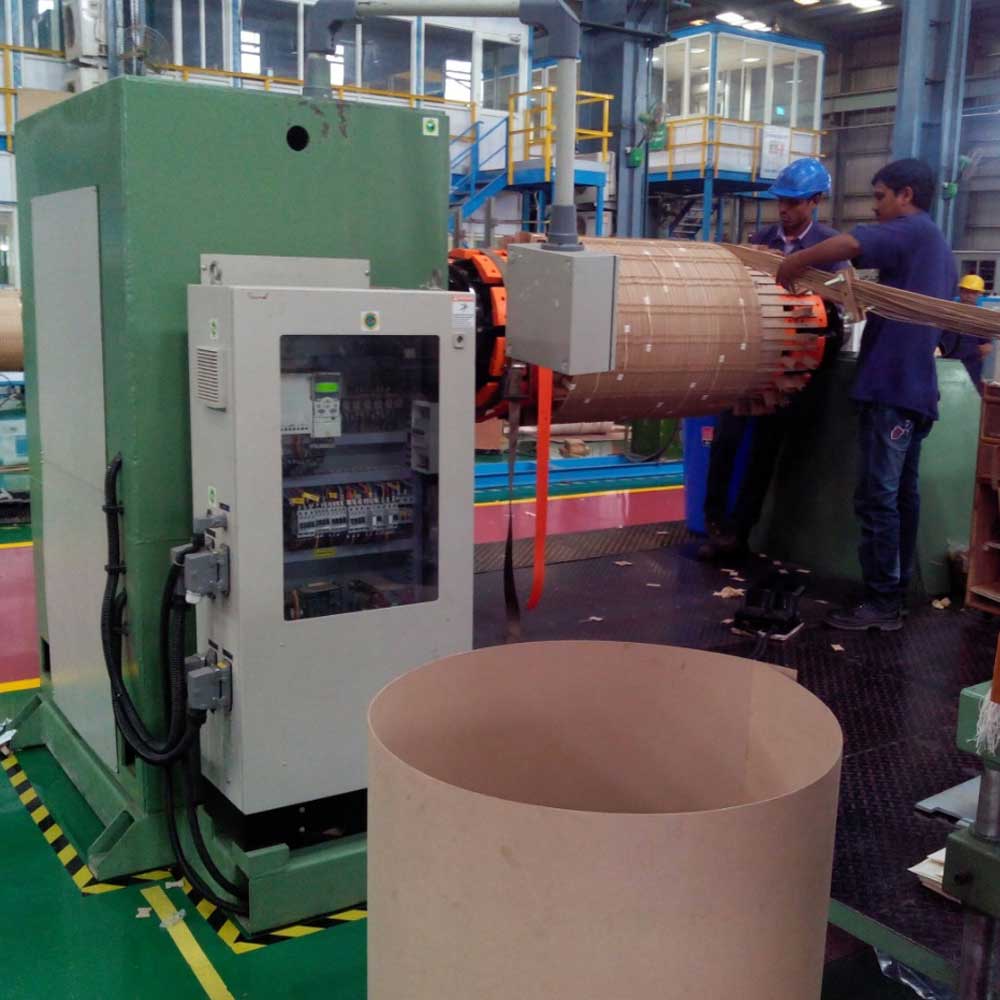

Kirpekar engineering offers a multi-speed power train capable of handling a variety of speeds and torque as per requirements. The winding machines are available in 5 ton and 10 ton capacity and are available without winding mandrels.
Key Features
- Constant tension system which prevents release of coil during a stop in the winding process.
- Automatic operation for tensioner unit by means of lead screw.
- Stubborn and rigid structure.
- Brake ON / OFF by Foot pedal switch
- Large figure digital turns counter (current turns + total turns)
- Shall be suitable for loading 48 bobbins
- VFD For Speed Control along with pneumatic braking
- Operation Speed 20-50 rpm
Technical Specifications :
KHWM- 5
- Maximum Coil Diameter - 1000
- Headstock Faceplate Diameter-500 mm
- Distance Between Headstock & Tailstock- 2000 mm
- Center Height of the Faceplate -1000 mm
- VFD For Speed Control
- Turns counting feature is provided.
- Gear Box and Motor
- Tensioner Unit for Manual Tensioning and Manual Movement
- Bobbin Stand for 48 Nos. Wires
Technical Specifications :
KHWM- 10
- Maximum Coil Diameter - 1200
- Headstock Faceplate Diameter-500 mm
- Distance Between Headstock & Tailstock- 2000 mm
- Center Height of the Faceplate -1000 mm
- VFD For Speed Control
- Turns counting feature is provided.
- Gear Box and Motor
- Tensioner Unit for Automatic Tensioning and Automatic Movement
- Bobbin Stand for 48 Nos. Wires
