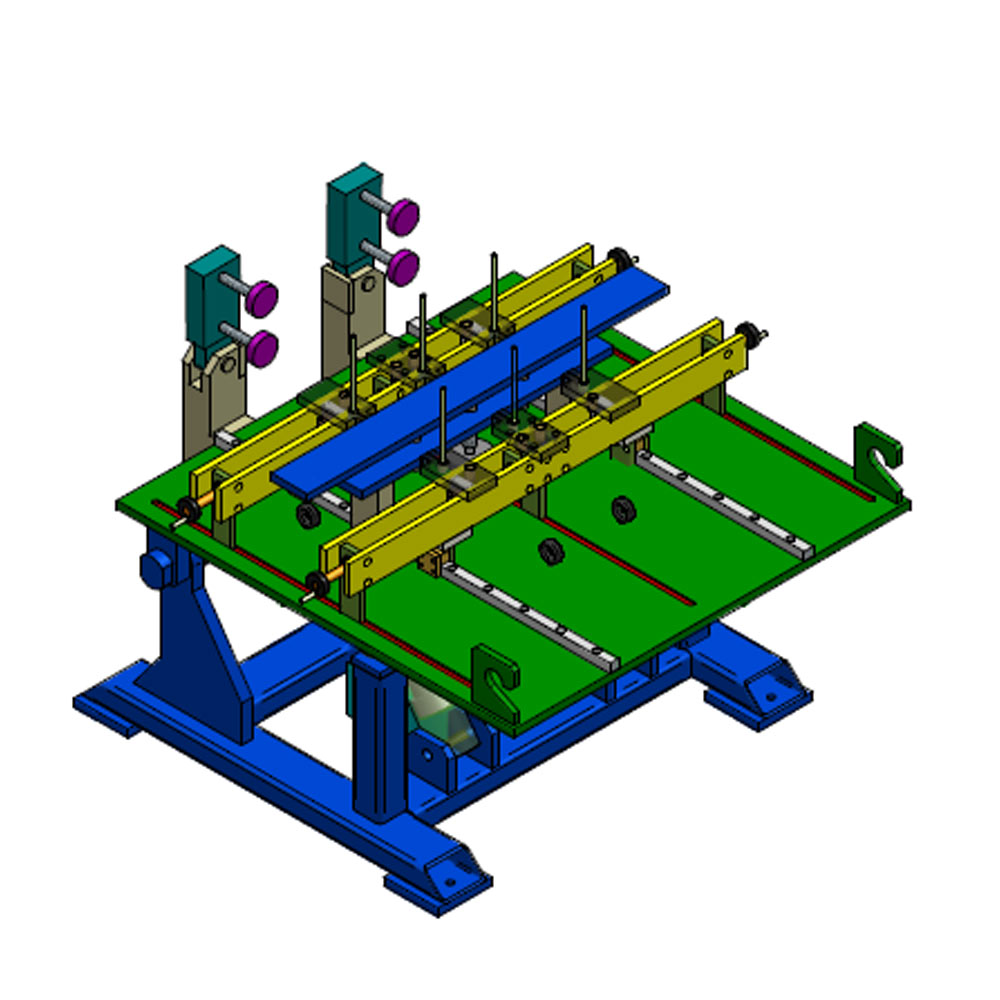

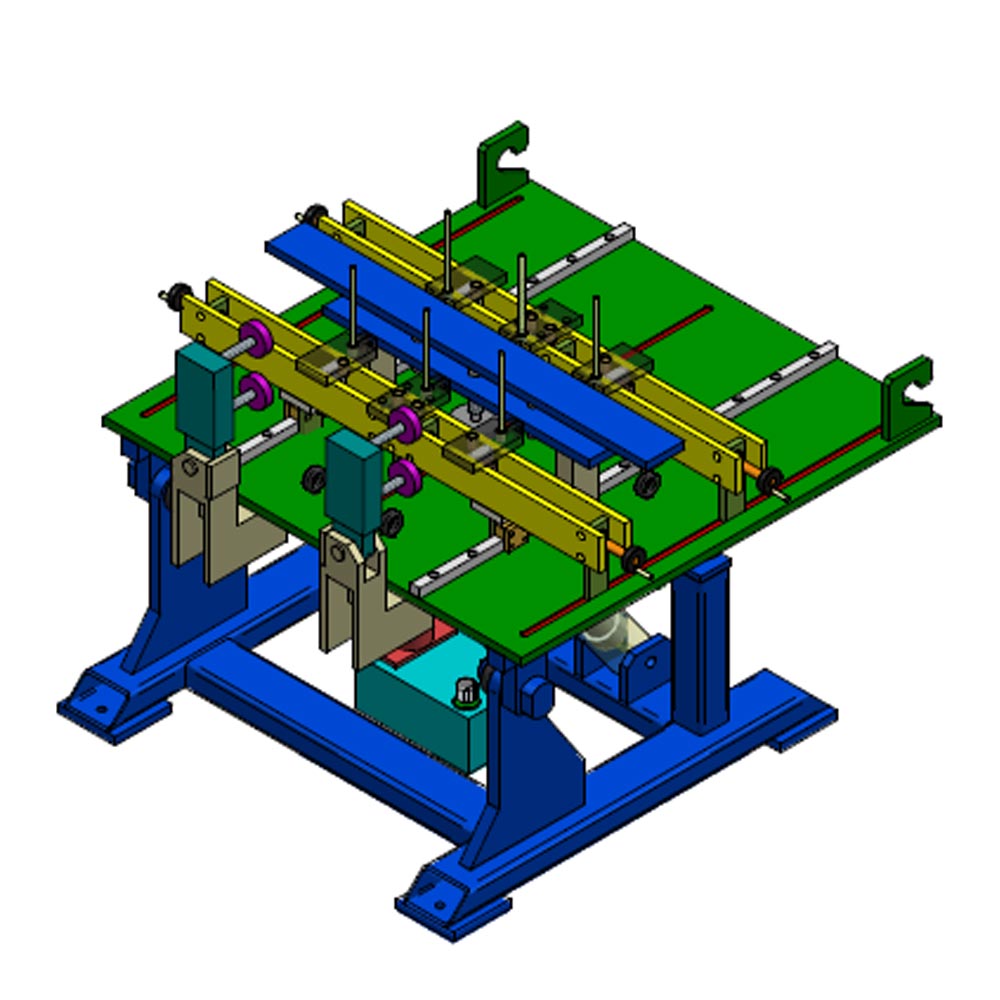

Kirpekar offers a line of core assembly tables to assist manufacturers with the assembly of stacked transformer cores.

The core assembly benches allow to assemble main cores for distribution transformer for sheets with holes and not. The core is assembled without the top joke, to allow the insertion of the transformer coils.

The main advantages are: Fast assembly work & Reduced core losses. Our offering of 1.5, 3, and 5 Ton tables are designed to work with core sizes.

Key Features

• Rack and Pinion arrangement for articulation
• Adjustable support legs for supporting the core in the vertical position
• Integrated hydraulic system to minimize footprint on the floor (Optional)
• Hydraulic interlocks to prevent table movement in the case of power loss or hydraulic system failure (Optional)
• Movable support limbs.
• Core with pin hole and without pin hole both can be stacked on the same table.
• Centre limb support.

CORE FEATURES (Different values upon request)

Specifications:-

• Diameter of pins for sheet holes - 10 mm
• Displacement between points - 7 mm
