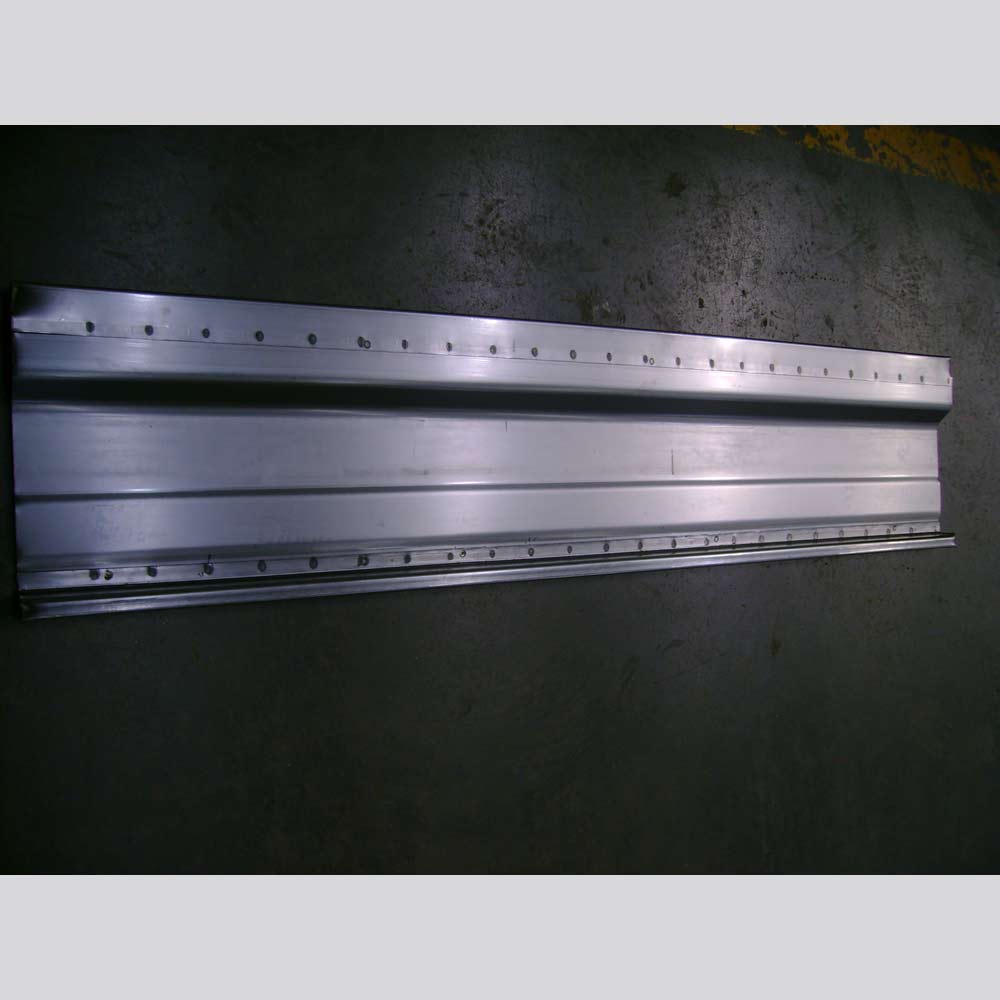

Roll Spotting is done on load body of commercial vehicles.

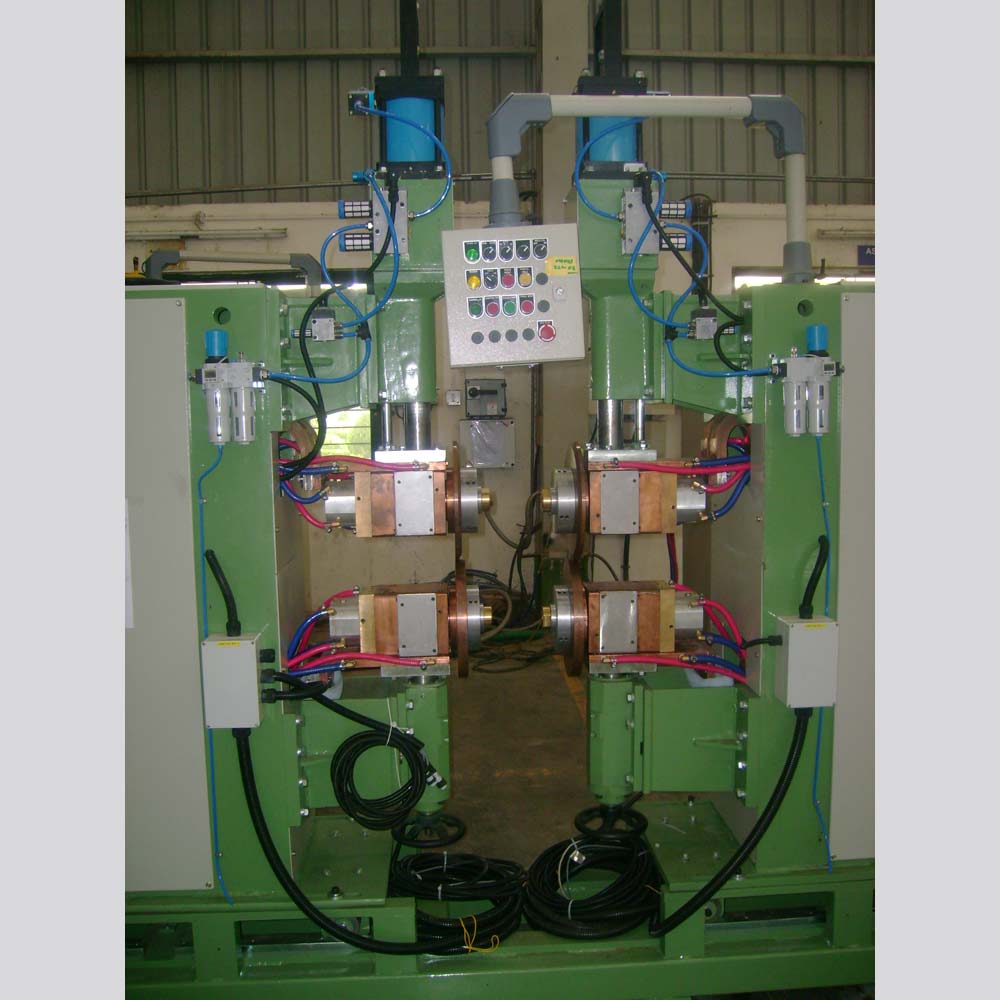

- 2 nos Seam Welder is used and Mounted opposite to each other
- Both machine are movable according to the required distance between both Machines
- Minimum Distance between two machine -200 mm
- Machine will be interfaced to Roll Mill
- Set Minimum Spot Pitch – 50 mm
- Microprocessor based welding controllers
- Kirpekar make Water cooled Welding Transformer
- Encoder will be provide for Speed Synchronizing with ROLL MILL
- Max Speed – 5-6 Meter/Min
