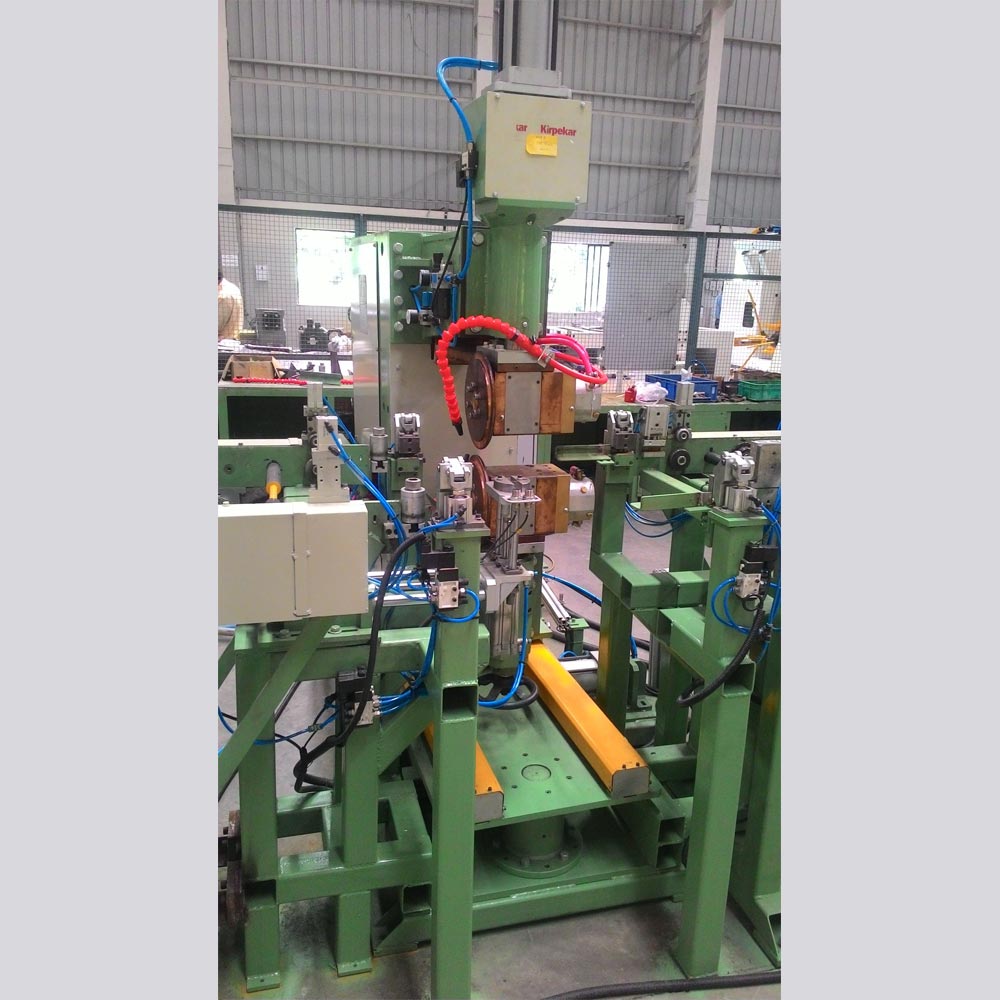

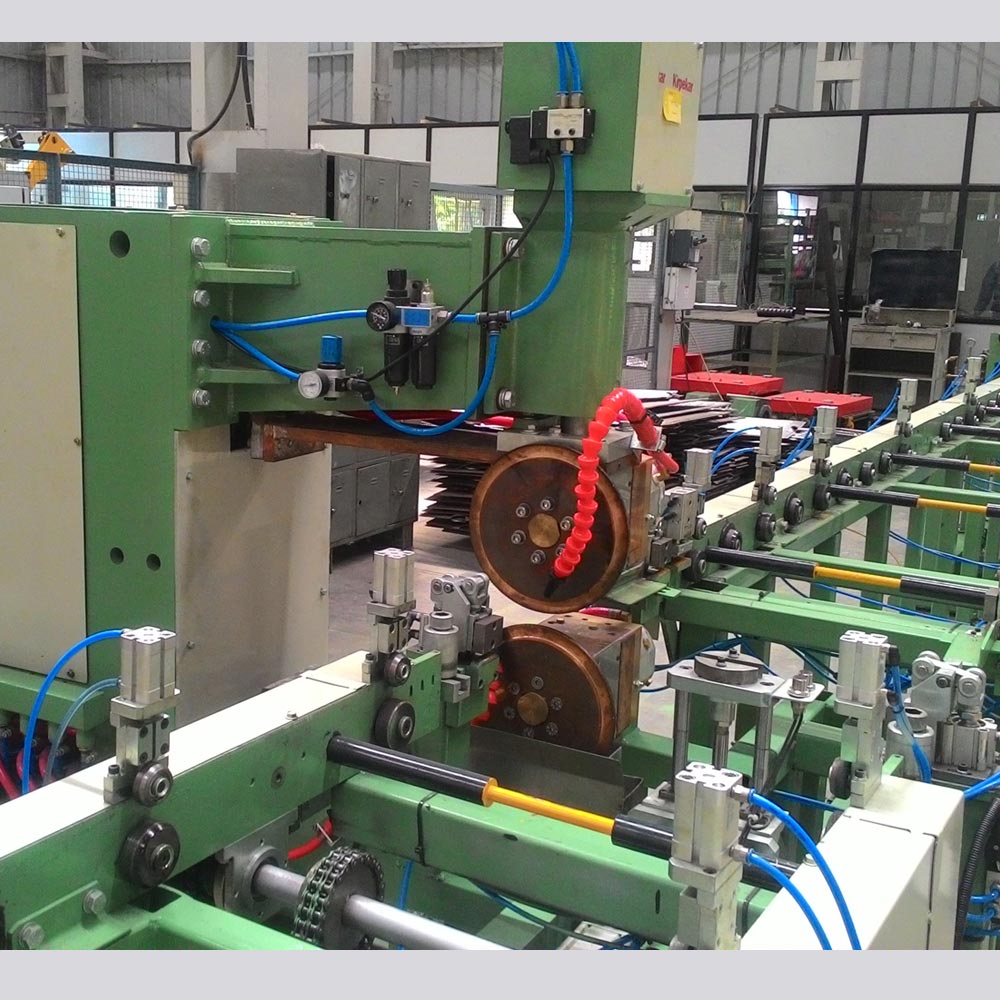

Longitudinal Seam Welding Machine

Technical Specifications

Kirpekar make longitudinal seam welding machine offers to weld the last side of the radiator automatically . The machine is programmed to weld both the ends of the raditors which is sutibale of any length of radiator.

Longitudinal Seam welding for last side of Radiator Fin
Model KSW-100 L with automation for last side of Radiator Fin
TRANSFORMER KTS- 100 C
Capacity at 50 % Duty Cycle 100 KVA
Rated Input Voltage 415 V, Single Phase, 50 Hz
WELD HEAD Round RAM
Cylinder dia X Stroke in mm 100 x100 mm Stroke adjustable
Max. Weld Force at 6 bar in Kgf 450 kgf
Throat Depth in mm 400
Throat Gap in mm 200
Cooling Water Volume in l/mm require 40
Machine Size in mm *(W X D X H) Approx 580 X 1350 X 2100 mm Approx
Machine Working Height in mm ( approx) 900-1000
Electrode Housing Top - silver housing
Bottom-silver housing
Drive Given to Top Electrode Wheel
