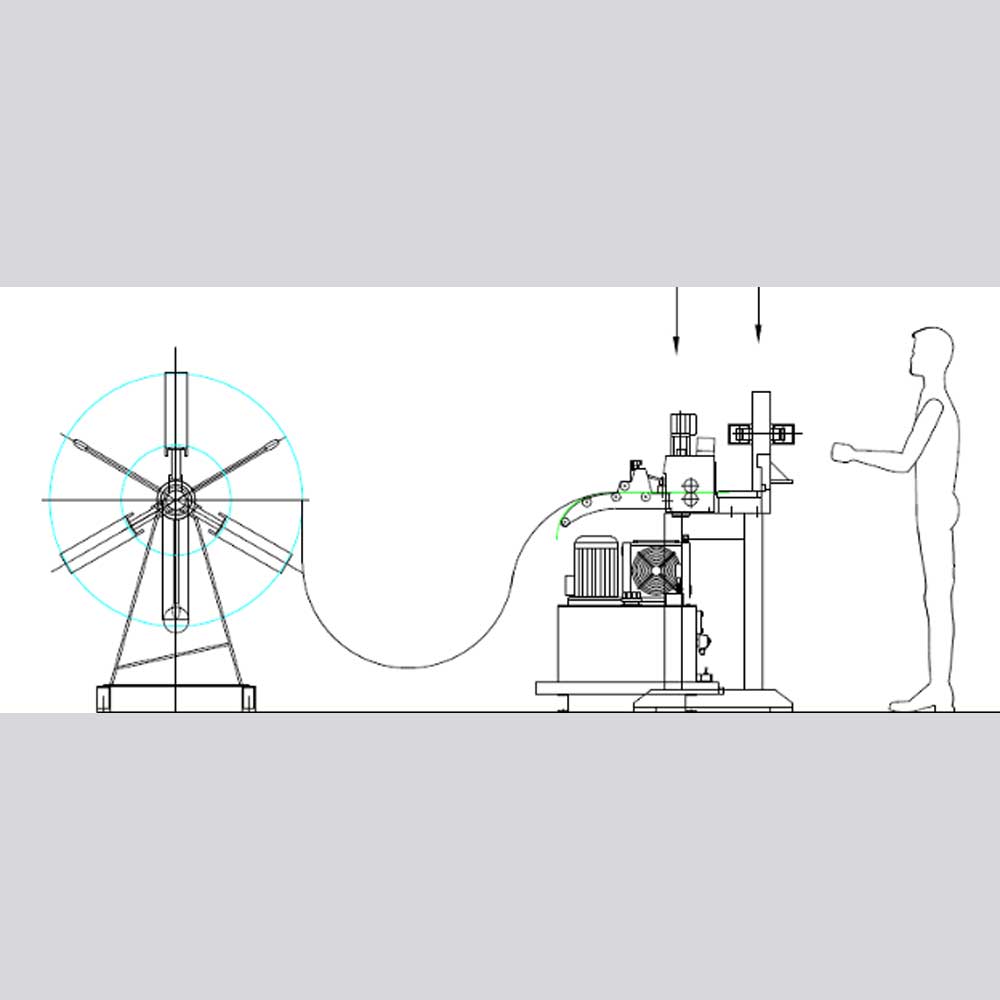

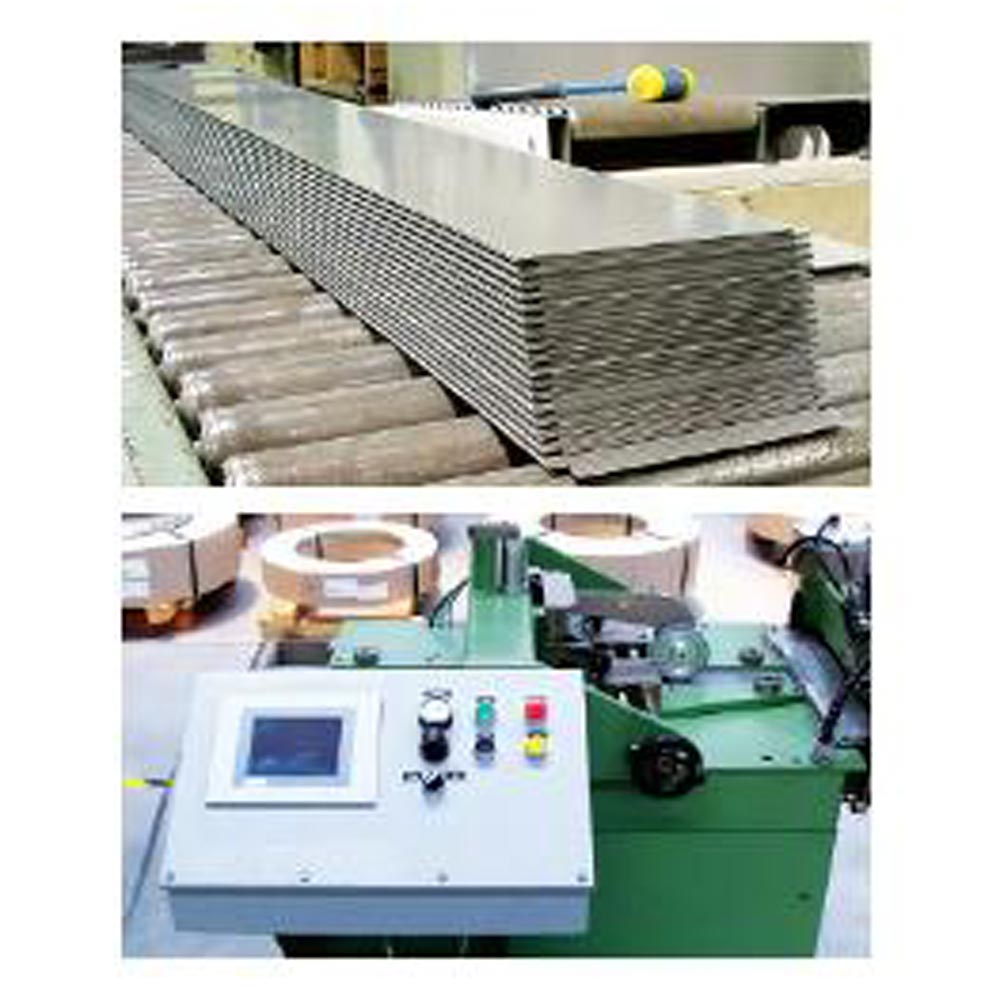

The Kirpekar Multi-purpose core shear is used for cutting laminations requiring a straight 90 degree cut. The progressive action allows the length of each lamination to incrementally increase or decrease depending on the functional requirements.

Key Features

• 90 degree shear with servo motor controlled feeding
• Progressive length feature
• Programmable, touch screen control capable of storing 4 (four) programs in internal memory
• Simplified Design, low maintenance costs, small footprint

Technical Details

• Max Width : 400 mm
• Max Length : 2,000 mm
• 0.3 mm < thickness < 3 mm
• Microfeed servo drive roll feeder
• Speed 30 pcs/min max
• Accuracy ±0.05 mm
• Electronic control with entry strip guide

Advantages of the solution

• Part programming directly on the line terminal.
• Various models can be produced in a row without stop or scrap.
