• Rotor Coil Slip Ring Welding
• Wire Dia. – 0.5mm to 1.7mm
• Material – Copper
• Thickness of Rectifier Plates – 0.8mm to 1.2mm
• Width of Plate – 2.0mm to 6.5mm
• No of Leads – 2 Leads in each plate Max.
• Shaft Dia. 17mm to 25mm
• Rotor OD – 84 mm to 125mm
• Weld Joint – 2 Nos (180 Degrees)

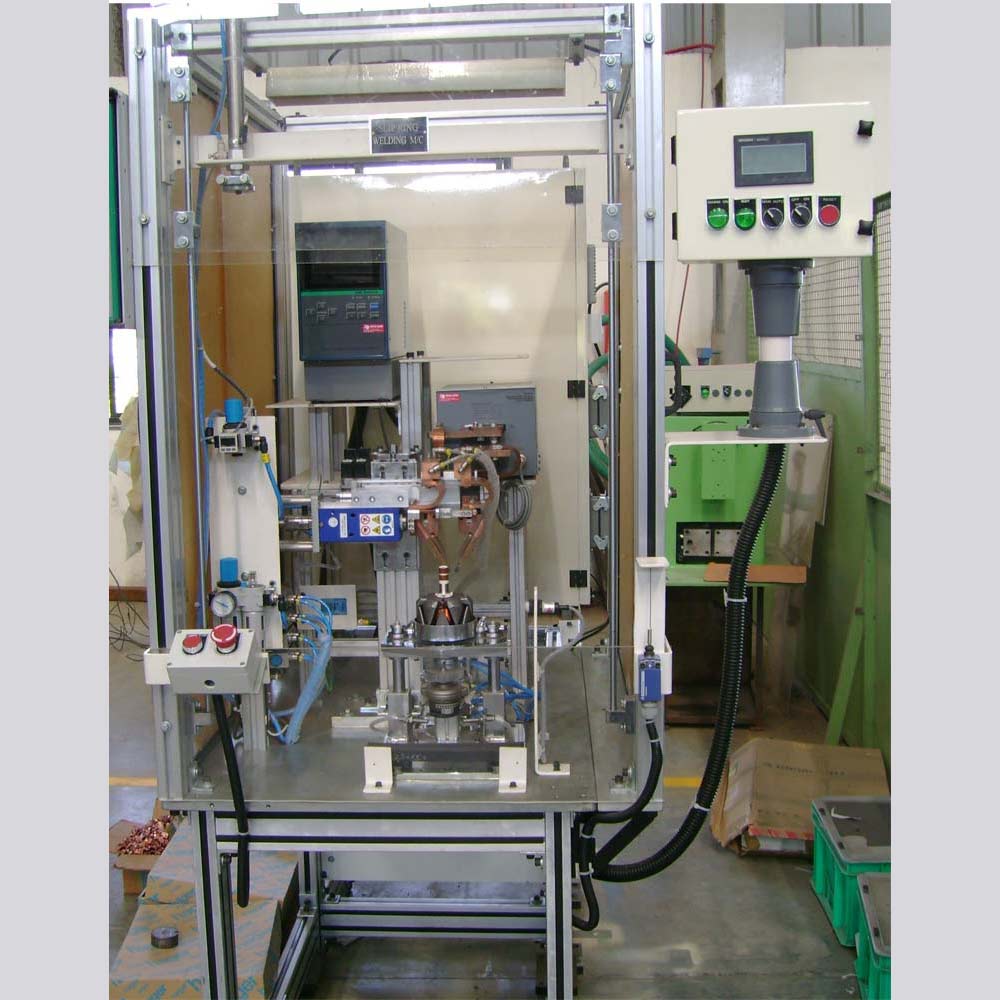

• Machine – KSLT – SPM

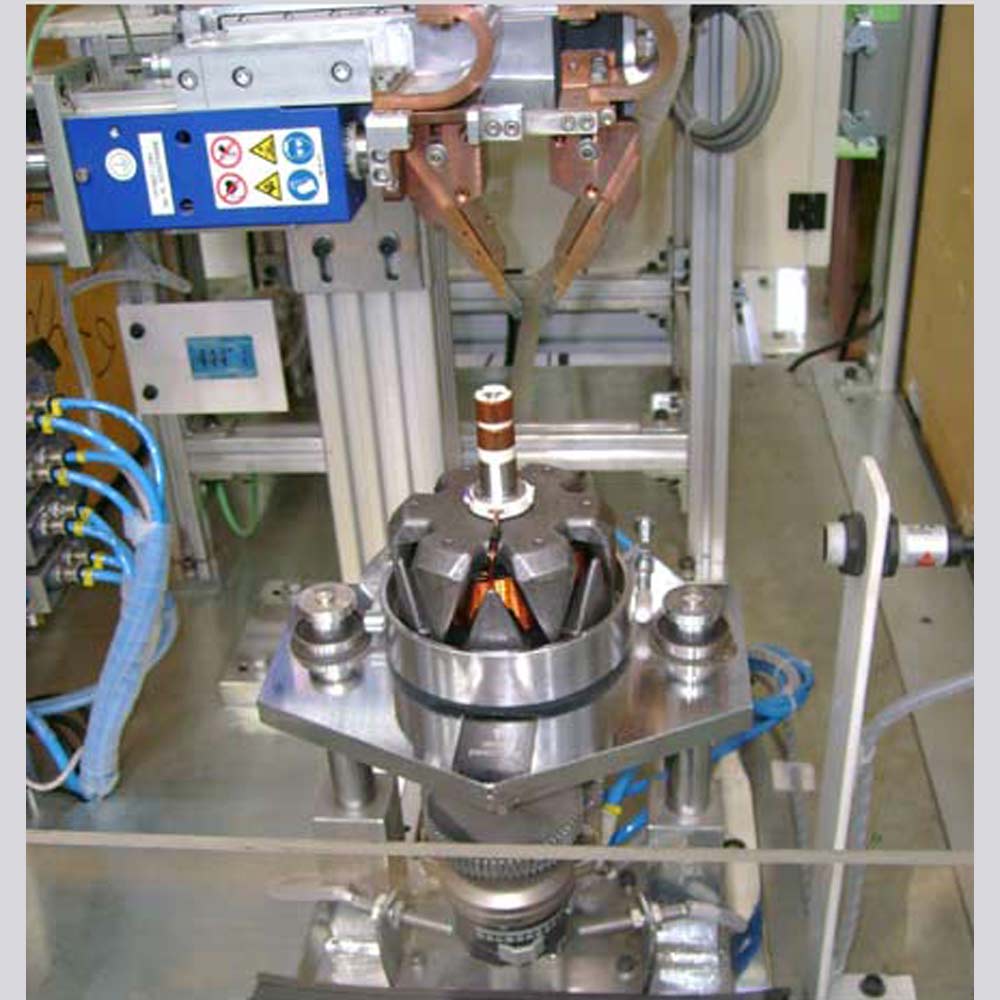

• Weld Head – Special Pincer Head – Kirpekar Make
• Transformer – AC / MFDC as per customer choice
• Controller – AC/ MFDC
• Locator with Shuttle – For Loading & In-Out Movement
• Indexing of Locator – By Servo Mechanism
• PLC & MMI – For Program & Sequencing
• Expected Cycle Time for 6 Nos of Weld Joints – 25 Seconds Approx. (Loading / Unloading Extra)

Optional Accessories

• Digital Pressure Switch, Water Flow Switch, Light Curtain, LVDT, Load Cell, Rejection Bin, Acrylic Cover for Machine & Tower Lamp with Inbuilt Hooter.
