Hv Foil Winding Machine

Technical Specifications

This machine is designed to wind a single Aluminum/ Copper foil with 2 insulation layers.  It produces multiple windings on a single mandrel, one winding at a time.

Key Features
  • Winds a single foil with up to 2 insulation layers

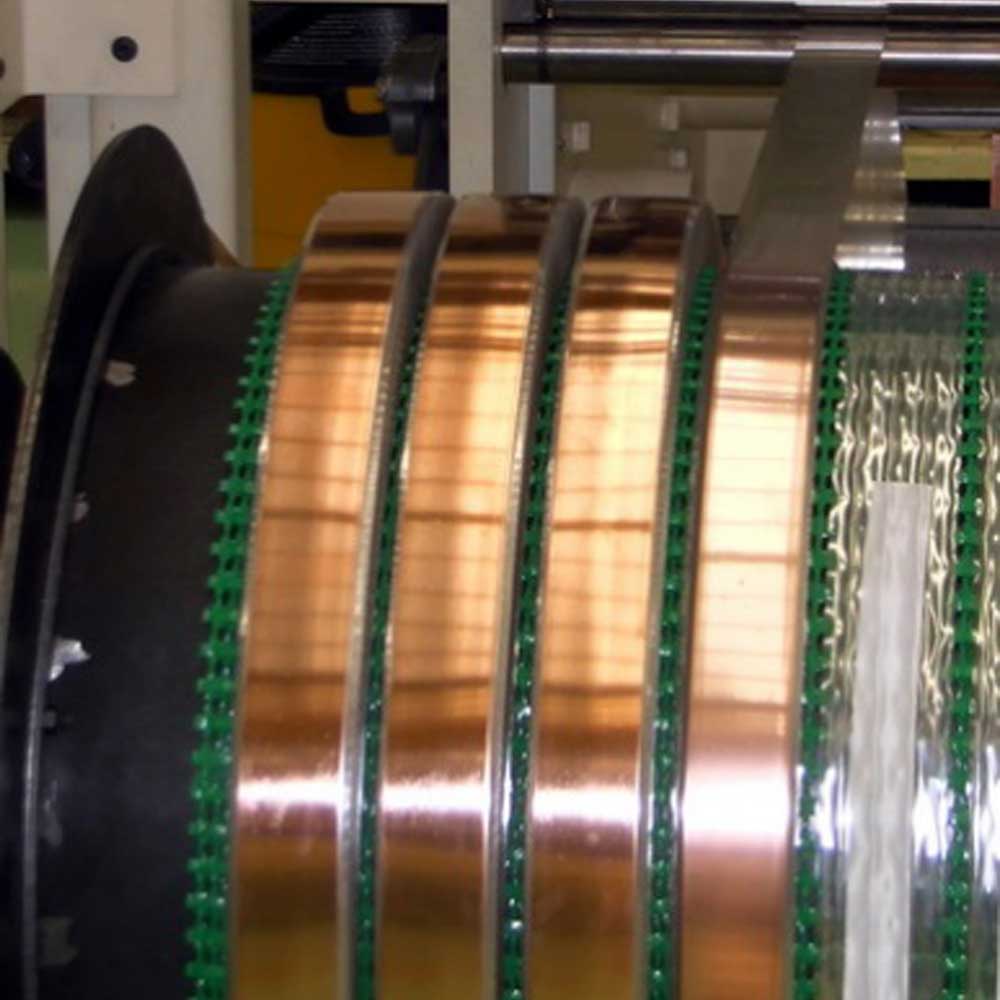

  • Produces multiple windings on a single mandrel, one winding at a time
  • Compact design, utilizing pneumatic and electronic controls
  • Kirpekar PC-based HMI, programmable control system with remote troubleshooting
  • Responsive, automatic foil alignment system with laser marking for setup
Technical Specifications:
  HV FOIL - 1000 HV FOIL 2000
Coil Configuration
Coil Diameter 1000 mm 1500 mm
Coil Length 1500 mm 2000 mm
Coil Weight 500 kgs 1100 kgs
Adjustable Length range 500- 1200 mm 500-2200 mm
Lead Clearance Right 100 100
Lead Clearance Left 100 100
Foil Conductor Decoiler specifications
No of Payoffs 1 1
Diameter of Payoffs ID 153 mm 153 mm
Width of foil 20- 200 mm 20- 200 mm
Thickness of foil 1.2 to 2.5 mm 1.2 to 2.5 mm
Type of foil Al or Cu Al or Cu
Wieight of Payoff 400 kg 400 kg
Foil tensioning system Disk with pneumatic caliper Disk with pneumatic caliper
Payoff mandrel Pneumatic , expanding type Pneumatic , expanding type
Insulation Decoiler
No of Payoffs 2 2
Diameter of Payoffs ID 76 mm 76 mm
Width of insulation 24 to 260 mm 24 to 260 mm
Insulation Tensioning System Disk with pneumatic caliper Disk with pneumatic caliper
Payoff mandrel Pneumatic , expanding type Pneumatic , expanding type
Options:

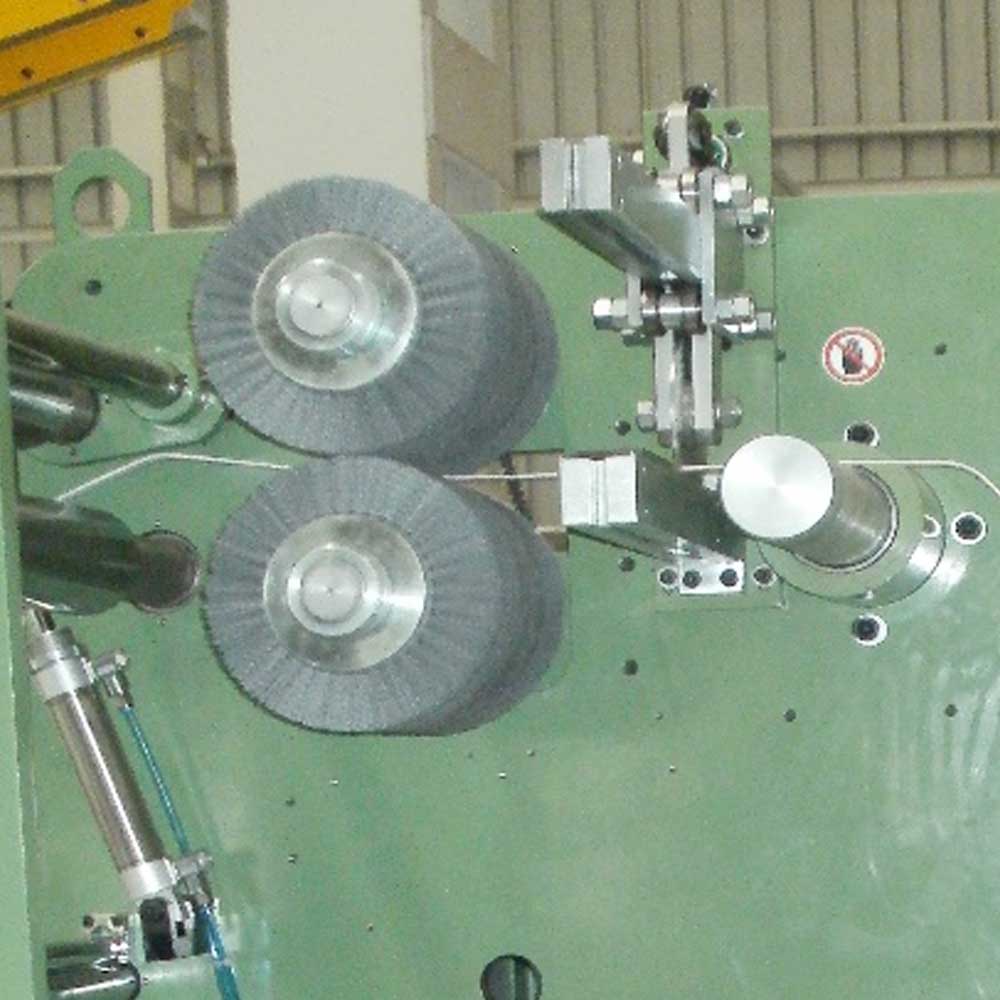

  • Brush cleaning system for foil prior to winding

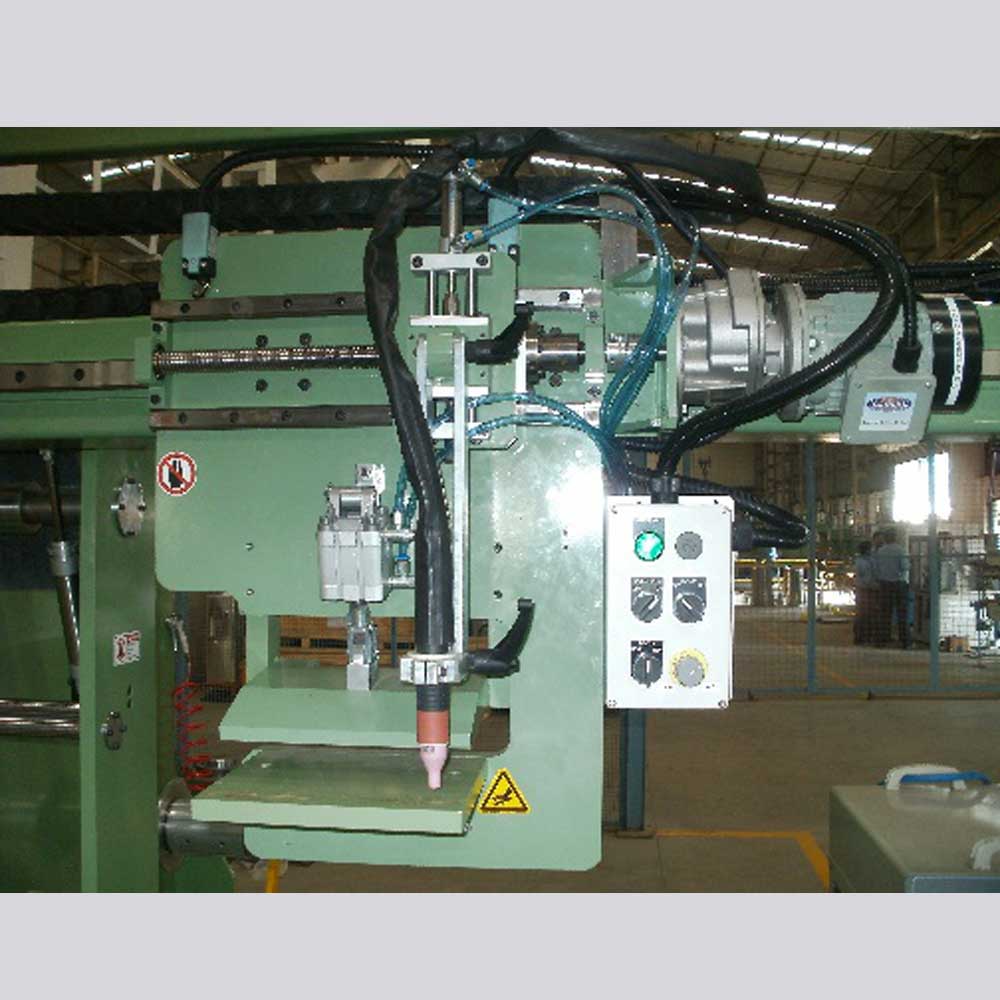

  • TIG welding of lead to Foil.
