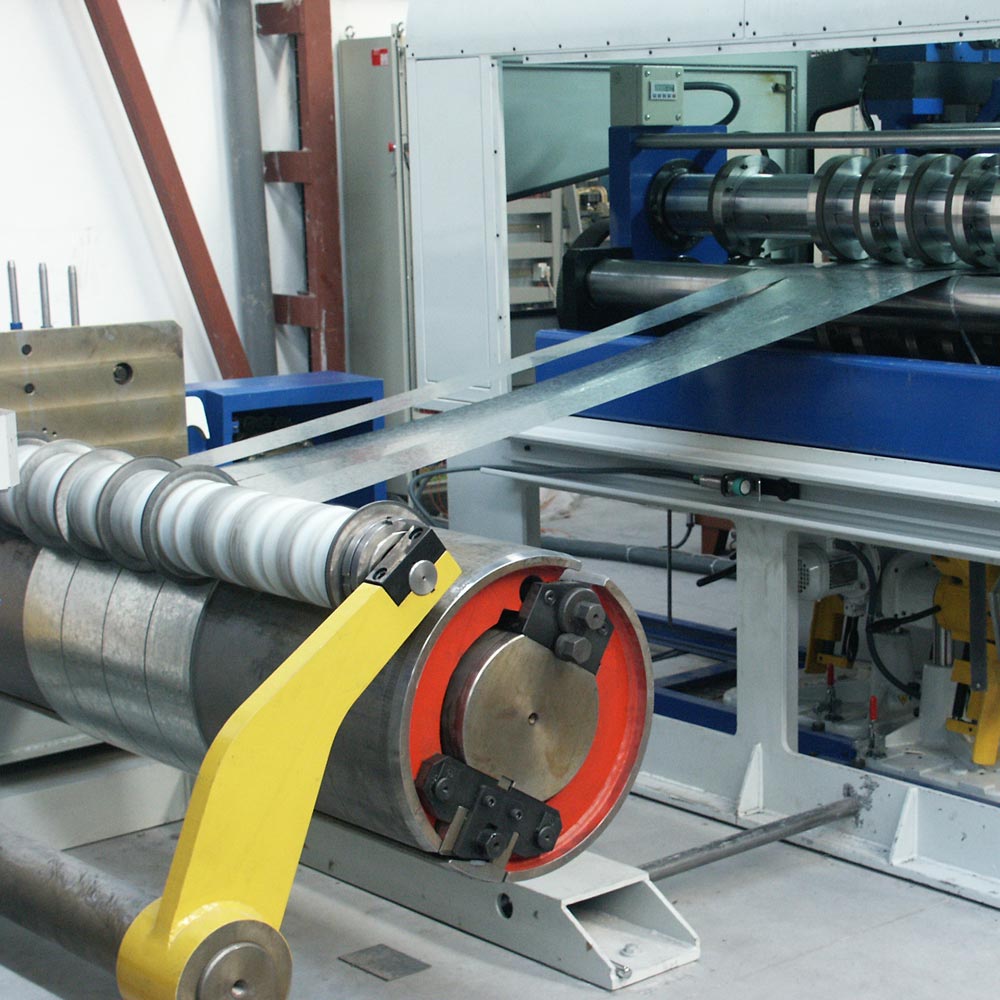

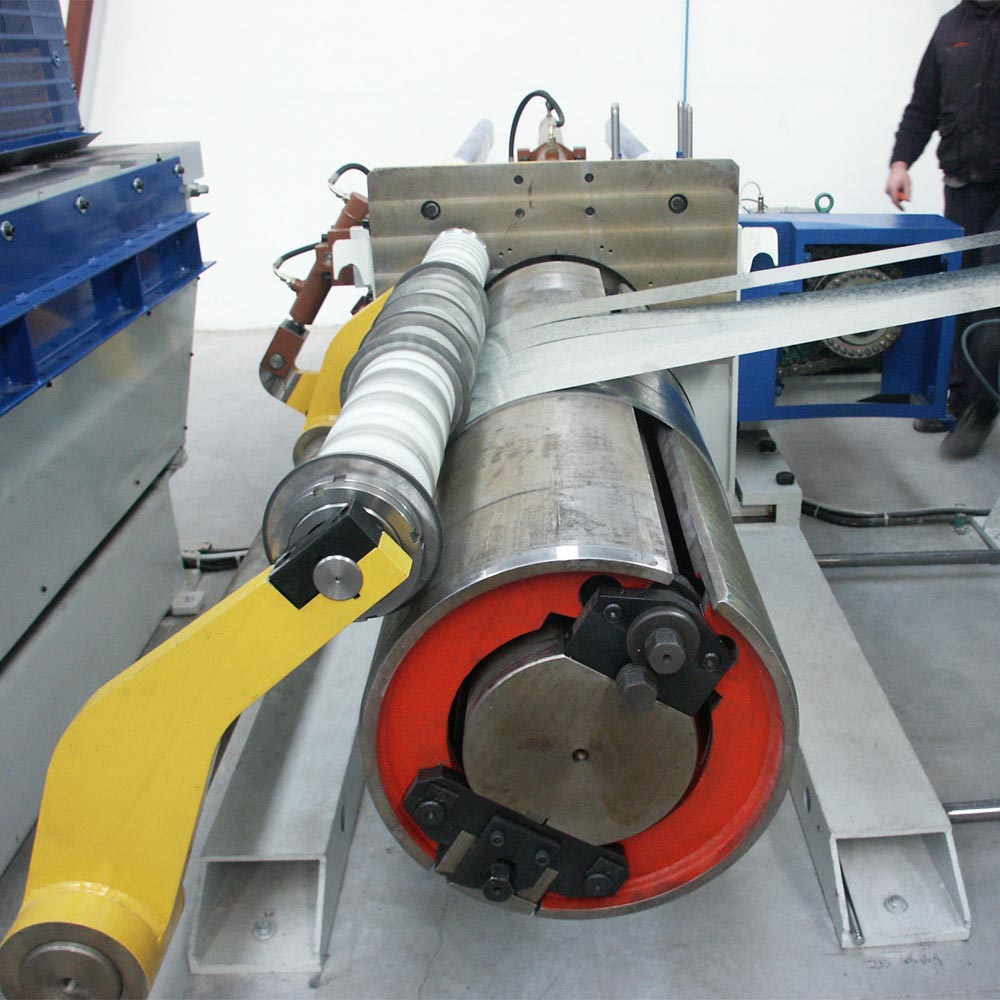

Core Slitting Machine

Technical Specifications

The Kirpekar Slitting Machine is a popular choice for narrow width slitting of a wide range of films and laminates. The unique design means faster coil changes with easier thread-up and splicing. The result is reduced down time and improved productivity. With high production speeds, accurate tension control and one man operation the versatile Kirpekar Slitter and Rewinding Machine offers an exceptionally cost-effective solution.

Standard features for Core Slitting Machine
  • Slitting unit with 1-6 pairs of slitting knives, reduces the cutting capacity
  • Hardened rolls -for stainless steel applications
  • Chromed rolls -for sensitive materials
  • Control panel

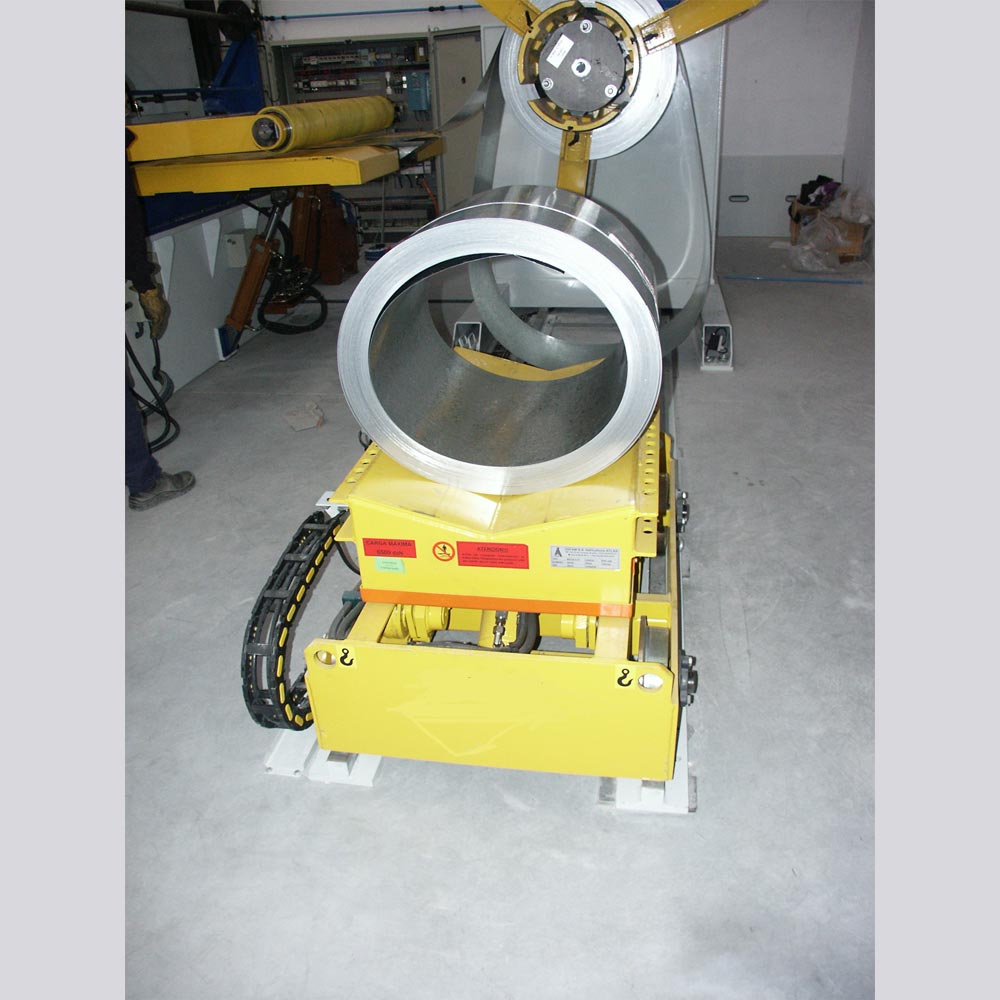

  • Manual or motorized Decoiler
  • Recoiling systems
Technical Details
  • Max width 1500 mm
  • Width to recoil is min. 100 mm (50 mm optional)
  • Inside diameter 480-508 mm
  • Max outside diameter 1200 mm
  • Max. Thickness of coil- 0.60 mm
  • Min. Thickness of coil- 0.20 mm
  • Max. Weight of coil- 5000 kg
  • Line speed- 3 m/min to 40 m /min
Additional features
  • Loop control
  • Tensioner via pneumatic felt brake
  • Six sheet strip separators (standard)
  • Electric drive motor for recoiling
  • Manual supporting bearing for recoiling
  • Hydraulic expansion of the mandrel
  • Frequency converter to control the speed
  • Presser arm
  • When working with heavy material, the pneumatic presser arm is essential to make sure the coil stays closed and to simplify changing/handling of coils.

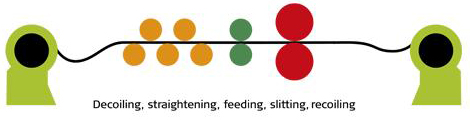

General Arrangement / Layout Drawing
Core Slitting Machine
