- Pin to Pipe welding
Roll over image to zoom in
- The equipment uses a 15kVA AC spot welding machine.
- The electrodes are adapted to have a self centering motion with both moving electrodes.

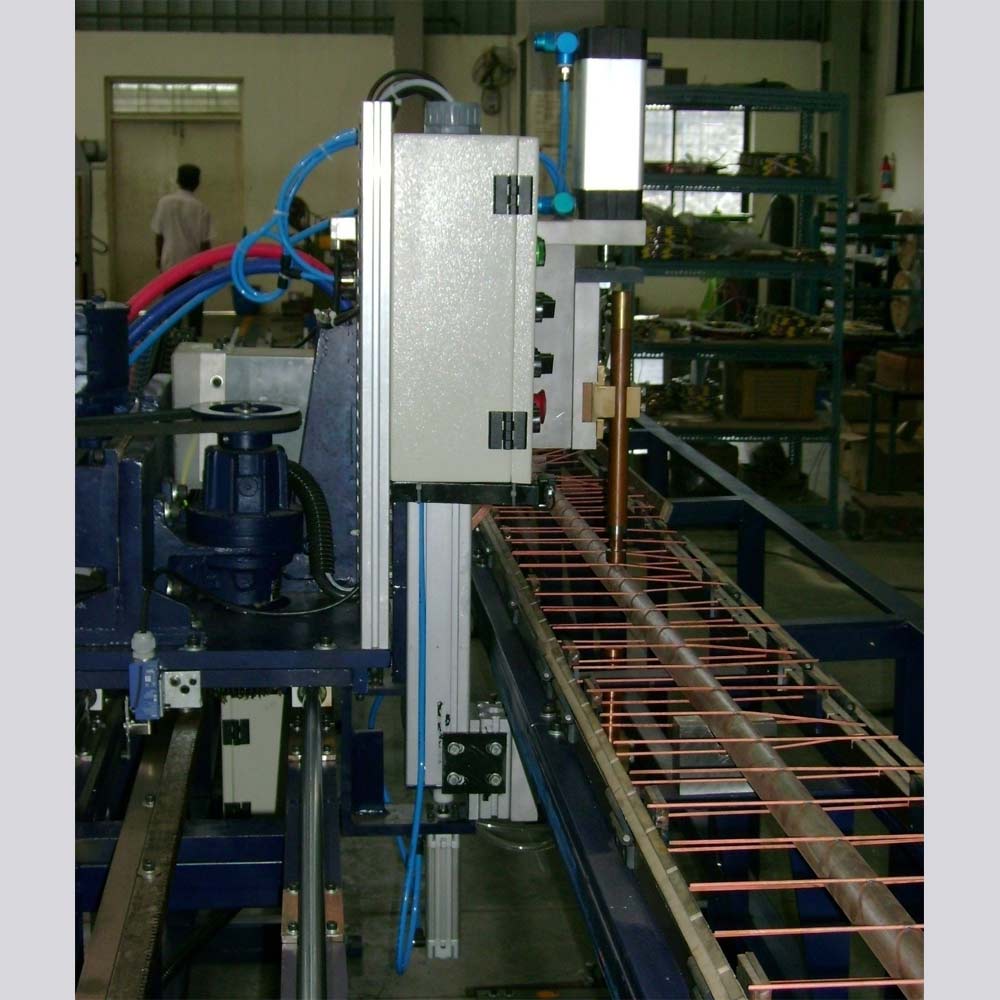

- The machine consisting of a special welding head, the transformer, operator pendent etc.. are mounted on a carriage that is moved
- The movement is motorized and assisted with a rack and pinion arrangement and guide shafts for carriage.

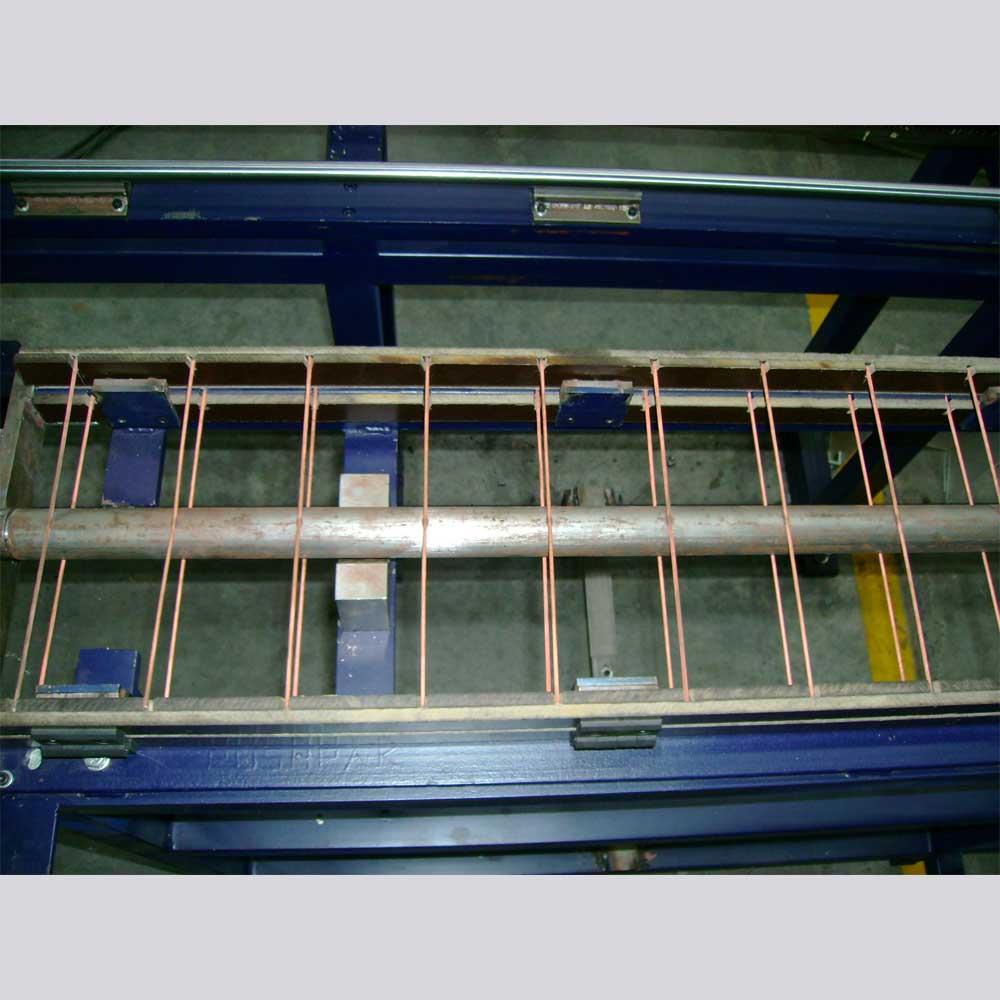

- The application involves welding of a steel tube to copper plated pins.
- Tube Size-34 mm Ǿ
- Pitch between pins is 75 mm, and the start stop is automatic. The pin sensing for the welding point is detected through an optical sensor.
- Length of the tube is 8 meters
