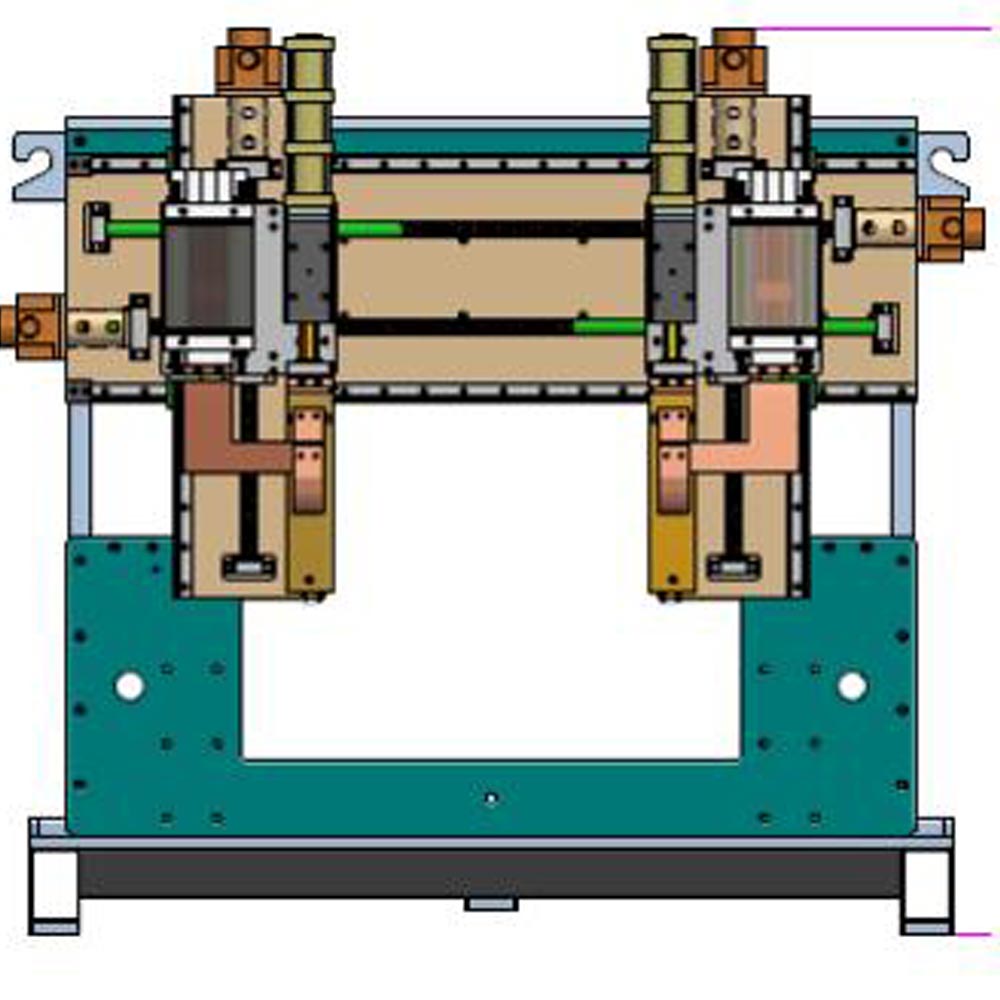

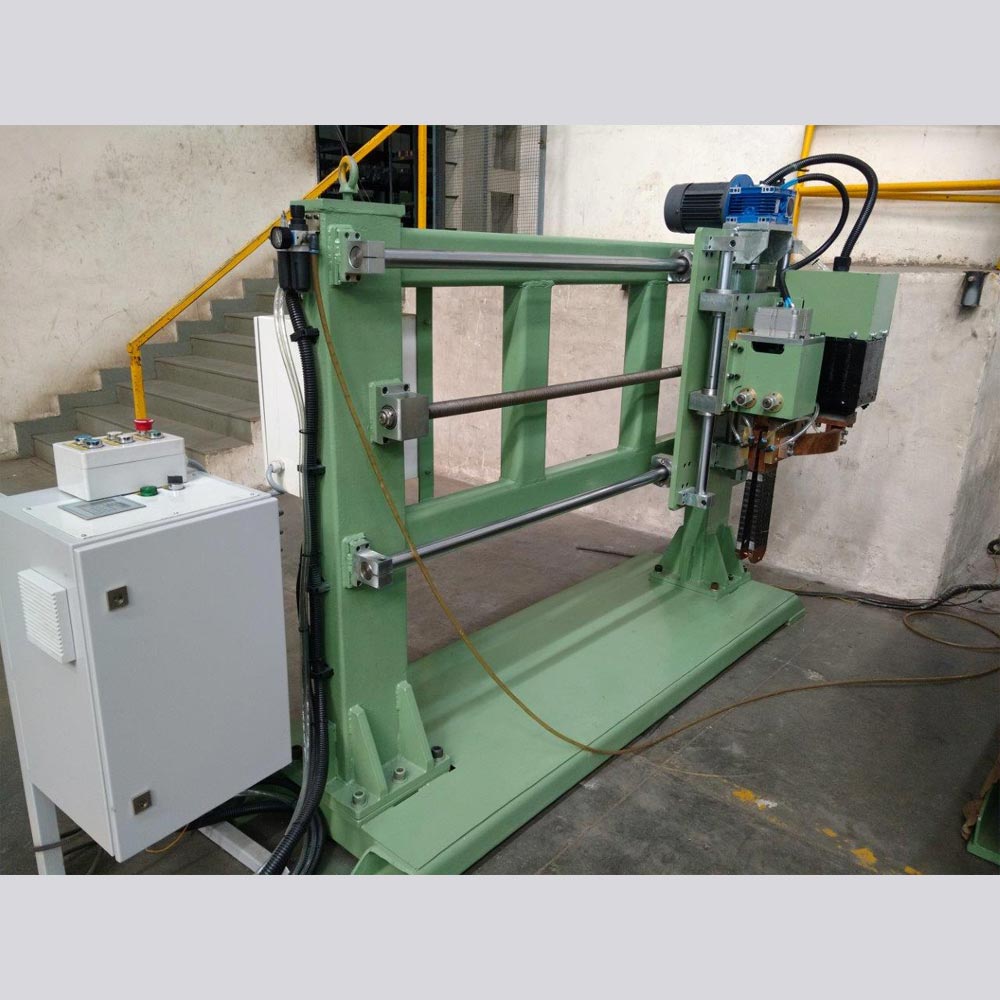

Spot Welding SPM For Corrugated Panels

Technical Specifications

This spot welding machine allows to insert a strip on each panel edge, and attach it to the panels through spot welding system at a fixed pitch in the flutes.

  • High Precision of each panel length.
  • Easy welding on tanks frame.
Features-
  • Spot welding machine (SPM) For Corrugated Fin with MS Fabricated Structure
  • Pneumatic Cylinders arrangement along with Ball Screw and LM Rails and Guides for movement of weld head cylinders.
  • AC Welding Transformer Rating, Servo Motors and gear boxes for up / down and left / right movement.
  • Control panel for ease of operation. Please note pitch will be fixed.
  • 75 KVA transformer with timing arrangement to adjust pitch
