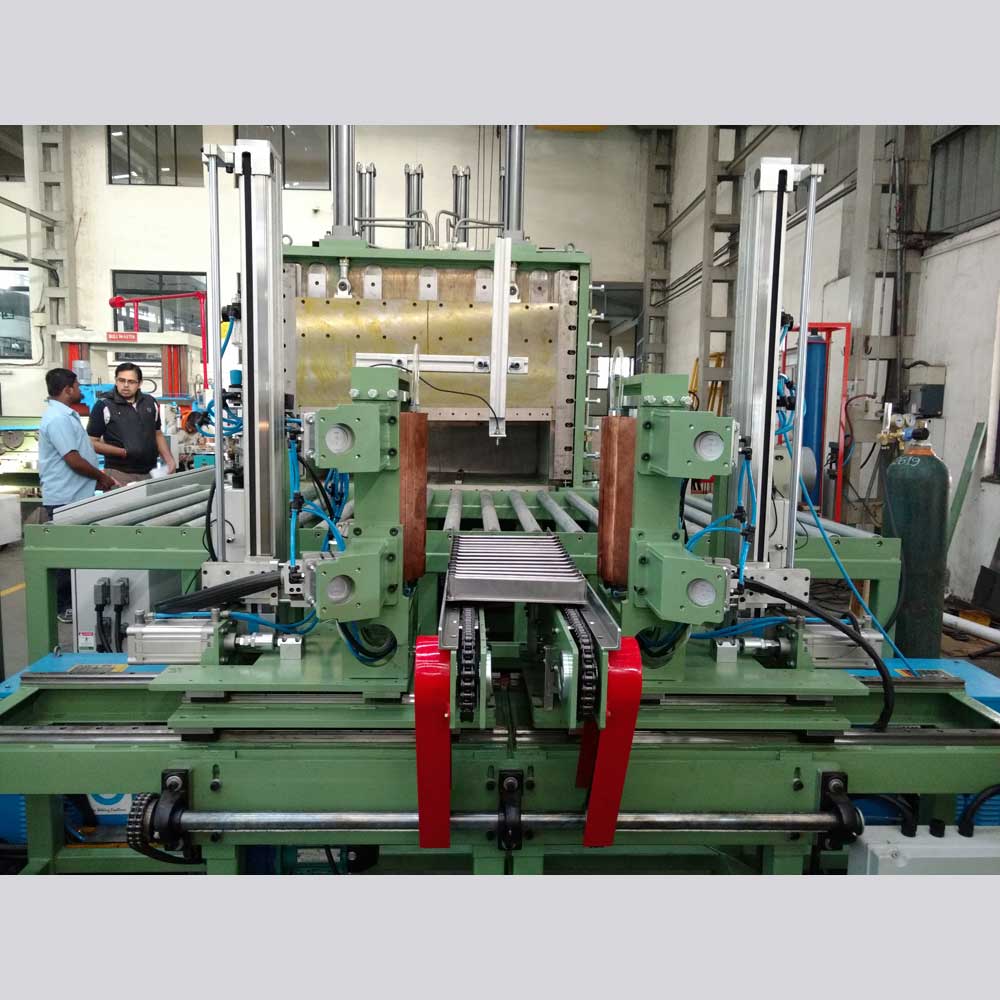

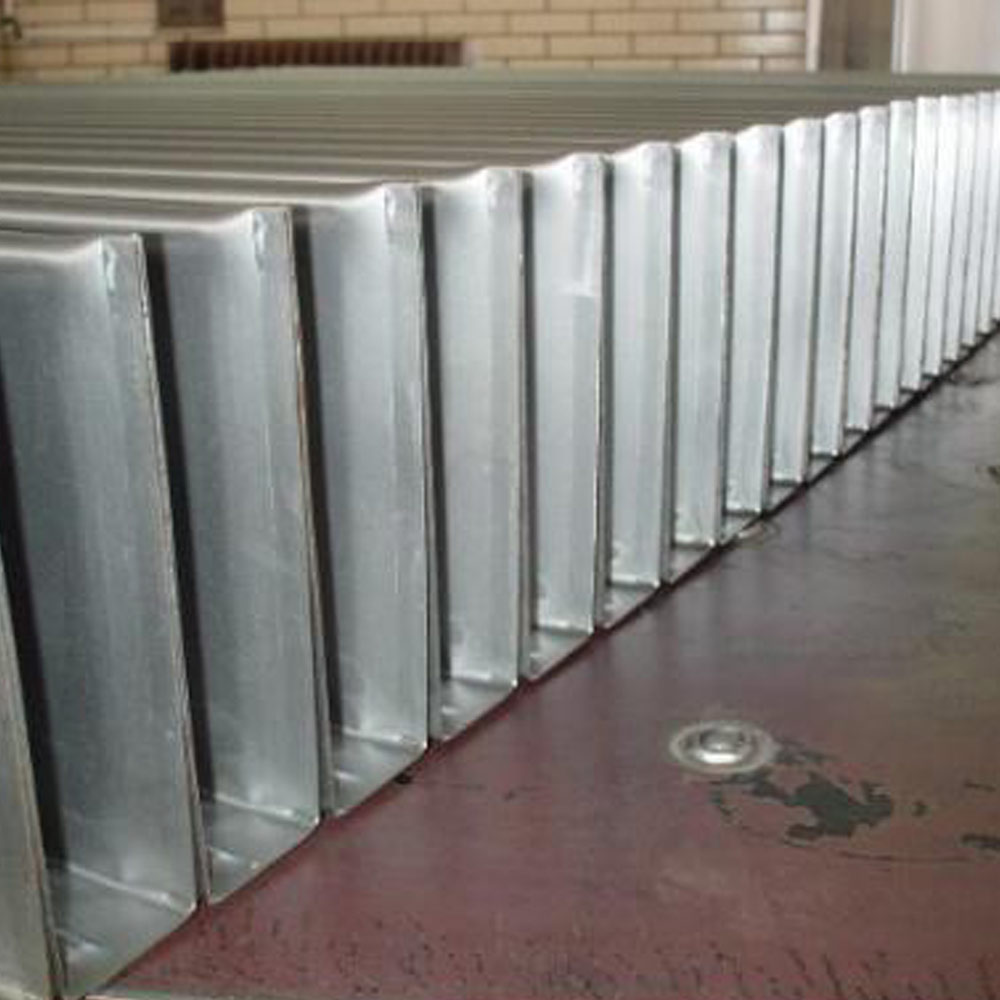

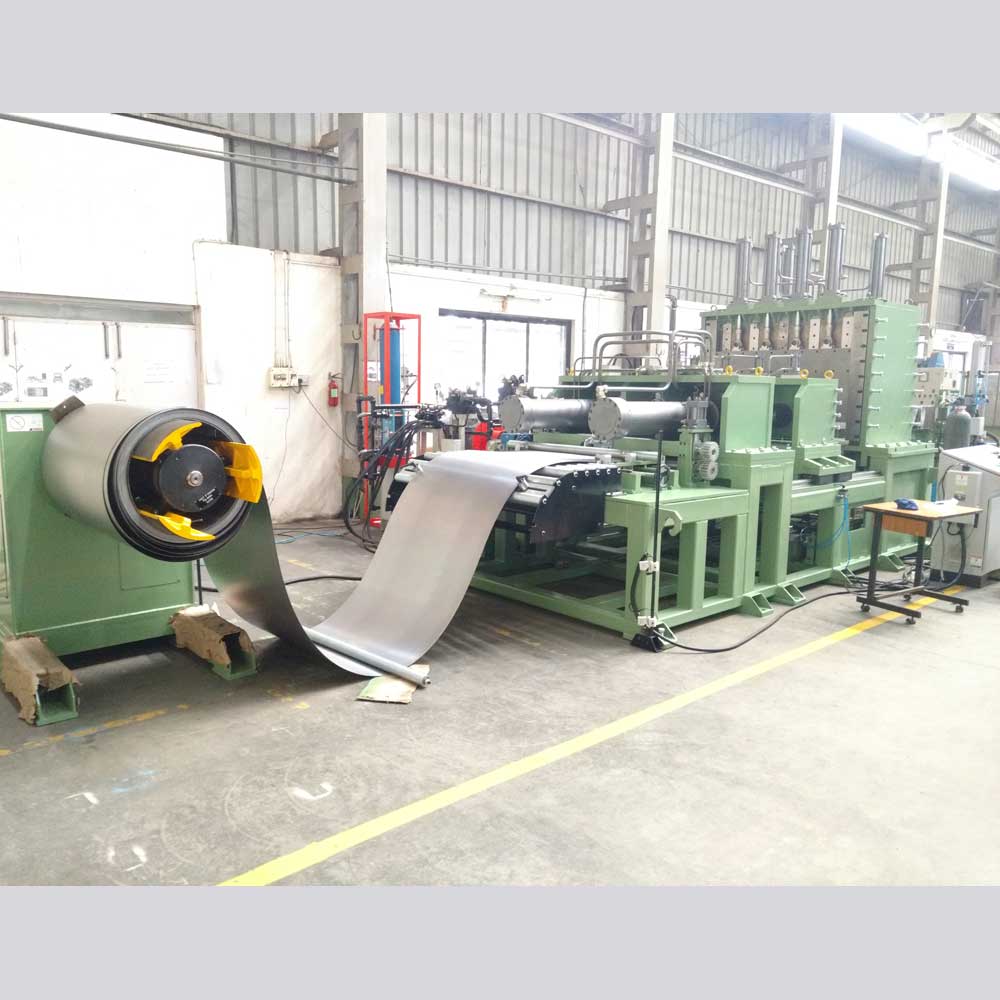

The Kirpekar Engineering Pvt. Ltd. Corrugated Fin Folding Machine is designed to provide an automated solution for the fabrications of corrugated wall tanks for electrical transformers. The machine which is comprised of a Decoiler, fin foiling machine, and automatic welding utilizes a PLC control system with a user friendly MMI. The easily to use system allows the operator to focus on fabrication of tank assemblies and not of machine programming.

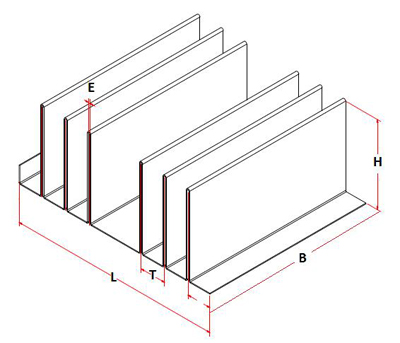

| Description | KCFFM-1300 | KCFFM-800 | |
|---|---|---|---|
| Steel Sheet Width | B | 300 to 1300 mm | 300 to 800 mm |
| Corrugation Height | H | 50 to 400 mm | 50 to 250 mm |
| Corrugation Pitch | T | 45 mm to 80 MM | 45 mm to 80 MM |
| Net Clearance between corrugations | E | 6 mm | 6 mm |
| Corrugation band length | L | Less than or equal to 2000 mm | Less than or equal to 2000 mm |
| Steel Sheet Thickness | 1.0 to 1.5 mm | 1.0 to 1.2 mm | |
| Forming Speed- Less than or equal to 20 Sec for fin ht. 50 mm Less than or equal to 40 Sec for fin ht. 350 mm with embossing. | |||
